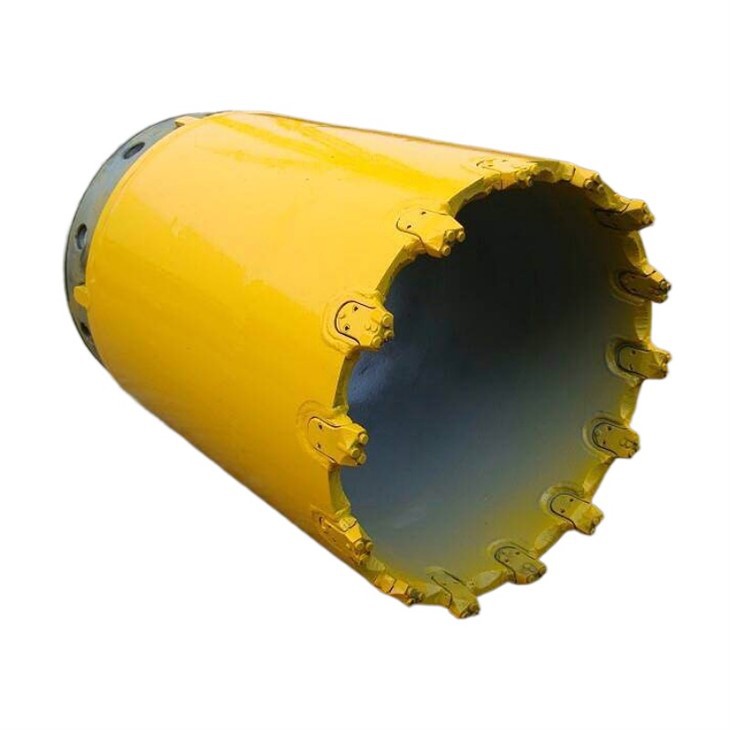

WS39 Casing Shoe

WS39 Casing Shoe

The casing shoe is employed to carry out casing operations in the foundation piling industry with the help of rotary drilling rigs or casing rotators/casing oscillators.Hyper Drill casing shoe equipped with casing teeth WS39 and holder SH35, or welding bars like BA90-35, BA01, etc. as option.

The WS39 casing shoe is an advanced tool engineered for efficient drilling. Constructed from high-quality alloy steel, it offers exceptional wear resistance and impact strength, ensuring stability during drilling operations in challenging geological conditions. The WS39's optimized design enhances compatibility with various drilling rigs, providing superior mud discharge efficiency and extending the lifespan of your drilling equipment. Whether working in soft soil or hard rock formations, the WS39 casing shoe delivers a solid foundation for your project.

Technically, it is possible to use a casing tube without a casing shoe, but doing so carries significant risks and limitations.Here's why:

Casing Shoe Functionality: The casing shoe is the bottom end of the casing tube that provides several important functions:
Sealing: It creates a seal between the casing and the borehole wall, preventing fluid loss and contamination of the formation.
Puncture: It has a sharp point or bit that punctures the formation, allowing the casing to be advanced through the borehole.
Protection: It protects the lower end of the casing from damage during installation and drilling operations.

Risks of Omitting the Casing Shoe:
Fluid Loss: Without a casing shoe, fluid can easily escape from the bottom of the casing, leading to loss of circulation and compromising the drilling process.
Formation Contamination: Fluid and drilling cuttings can enter the formation, potentially damaging the reservoir and affecting production.
Casing Damage: The lower end of the casing is vulnerable to damage from the formation and drilling tools without the protection of a casing shoe.
Installation Difficulty: Advancing the casing without a casing shoe can be challenging and may require additional equipment or techniques.
However, there are a few scenarios where using a casing tube without a casing shoe might be considered:
Shallow Holes: For very shallow holes with stable formations, the risks associated with omitting the casing shoe might be minimal.
Temporary Solutions: In some cases, a casing tube might be used temporarily without a casing shoe until a permanent casing shoe can be installed.
Specialized Techniques: Certain drilling techniques, such as reverse circulation drilling, might not require a casing shoe.

It's important to note that omitting the casing shoe is generally not recommended due to the potential risks involved. Consulting with experienced drilling professionals and evaluating the specific project requirements is crucial before making any decisions.

1.A state-of-the-art factory and office complex, built from the ground up, covers an impressive area of over 20,000 square meters.

2.Raw materials are sourced from China's most prominent steel plate supplier, ensuring the highest quality.

3.Casing joint elements are crafted through advanced forging and heat treatment techniques, offering exceptional strength and durability.


4.Products have been sold to over 60 countries and regions worldwide, including the USA, Australia, Canada, New Zealand, Russia, Brazil, Mexico, Southeast Asia, Bangladesh, and various parts of Africa, highlighting the global reach and market penetration.

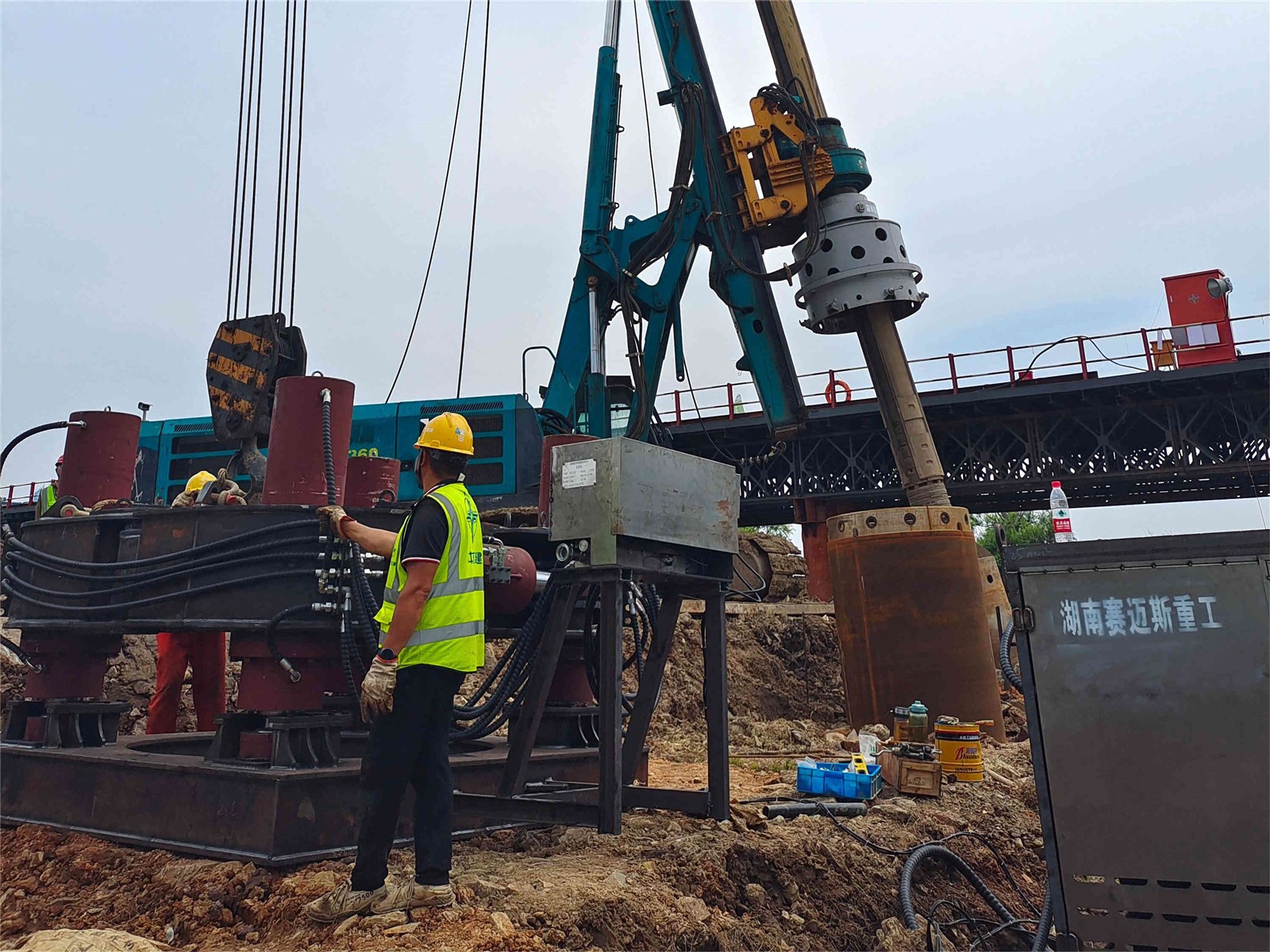

Cases

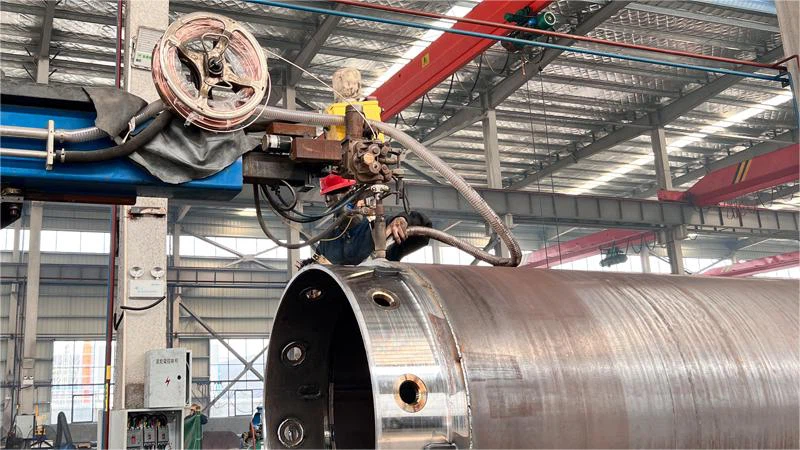

Workshop











Details

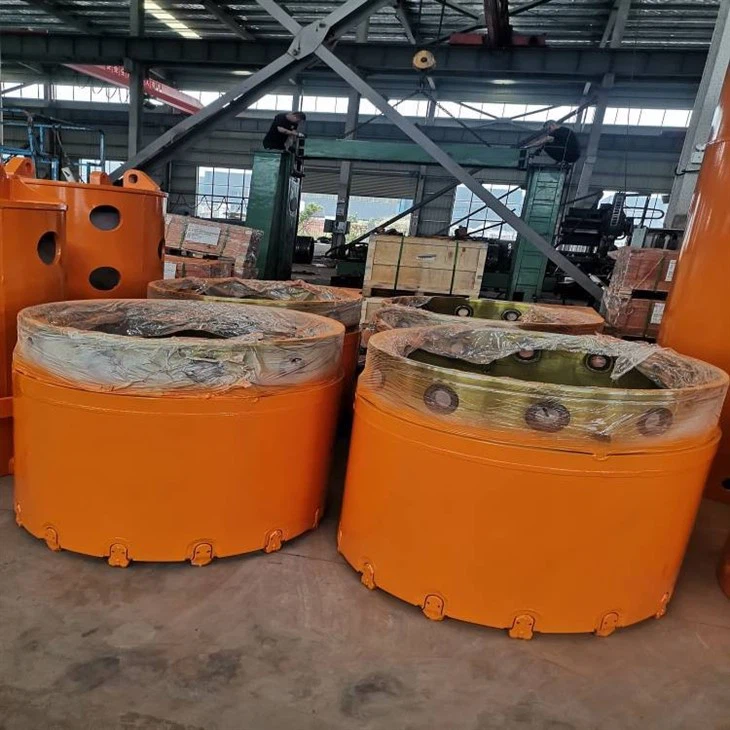

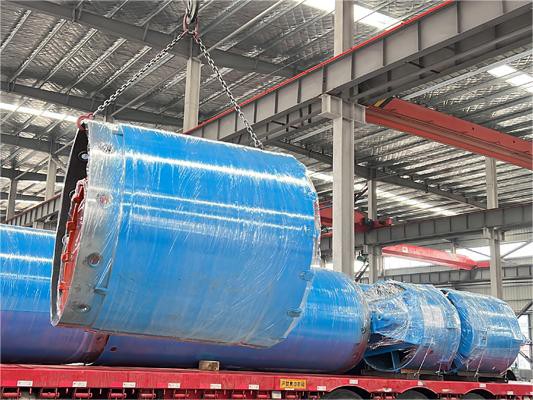

Packing and Delivery
