Foundation construction casing tubes are an essential component in building solid and durable foundations for any type of building structure. These tubes provide a temporary enclosure that is inserted into the ground to support the excavation process and prevent soil cave-ins while the foundation is being constructed.

Hyper Drill foundation construction casing tube are applied in pile foundation engineering and full casing construction. It is divided into two kinds:single-walled casing and double-walled casing according to its structure. And it can be divided into single section 2m, 3m, 4m ,5M,6M casing section according to its length.

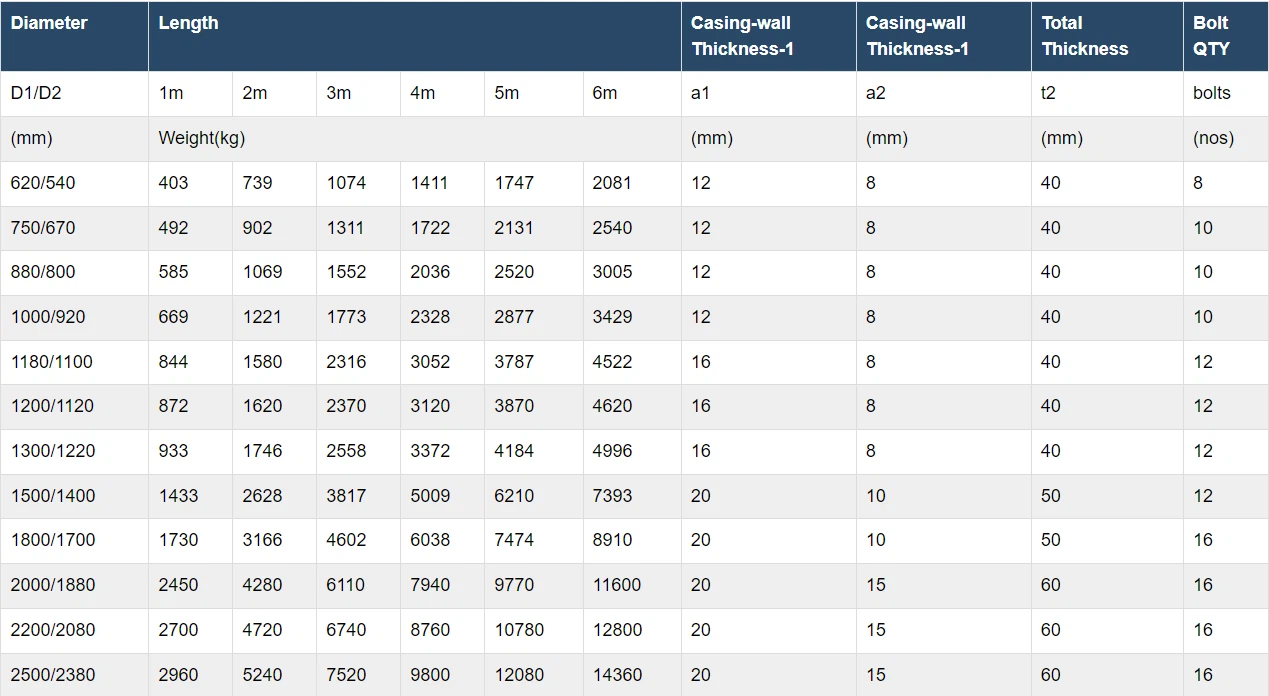

                                                                             Foundation Construction Temp Casing Parameter

※Other size can be customized as per customer demand

A foundation construction casing tube, often referred to as a "casing pipe" or "sheet piling," is a structural element used in the construction of foundations for buildings, bridges, and other civil engineering projects. It serves several important purposes:

Shoring and Support: Casing tubes are driven into the ground to provide temporary support to the sides of an excavation. This prevents soil from collapsing into the trench or hole being dug, which is especially important in loose or wet soil conditions.

Water Exclusion: They help to exclude water from the excavation area, preventing groundwater from entering the trench and making the construction process more manageable.

Foundation Protection: In certain construction scenarios, casing tubes can be left in place as a permanent part of the foundation, providing a protective barrier around the perimeter of the structure to prevent soil erosion and water infiltration.

Here are some characteristics of casing tubes:

Material: They are typically made of steel, although other materials such as aluminum, vinyl, or even reinforced concrete can be used depending on the application.

Shape: Casing tubes are usually circular, but they can also be manufactured in other shapes like H-piles, U-shaped, or Z-shaped sections to suit different soil and load conditions.

Length and Diameter: The length and diameter of the casing tubes can vary widely, depending on the depth of the excavation and the design requirements of the foundation.

Installation: Casing tubes are installed using specialized equipment, such as a pile driver or a crane with a vibratory hammer, which drives the tubes into the ground to the required depth.

The use of casing tubes is a common practice in construction, particularly in urban areas where space is limited and excavation must be done safely and efficiently near existing structures. They are also used in marine construction projects such as seawalls, bridge abutments, and wharves.

A casing tube enhances the safety and stability of a foundation through the following ways:

Preventing Soil Collapse: By being driven into the ground around the perimeter of the excavation, the casing tube acts as a wall that supports the soil and prevents it from collapsing into the excavation area, which is especially critical in loose or soft soil conditions.

Excluding Water: The casing tube serves as a barrier to groundwater, preventing it from entering the excavation site. Excessive water can saturate the soil, leading to instability and potential collapse of the excavation walls. By keeping water out, the casing tube maintains the integrity of the soil and the excavation.

Creating a Stable Work Environment: With the soil securely held back by the casing tube, workers can safely enter the excavation area to carry out necessary construction activities without the risk of a cave-in.

Protecting Adjacent Structures: In urban areas or when building near existing structures, casing tubes help to prevent soil movement that could damage nearby buildings, roads, or utilities.

Maintaining Excavation Shape: Casing tubes help to maintain the shape and size of the excavation, ensuring that the foundation is built within the intended dimensions and preventing the walls from deforming or bulging.

Supporting Deep Excavations: For deep excavations, casing tubes can be installed to great depths to provide the necessary support, allowing for the construction of deeper foundations or basements.

Facilitating Pile Installation: In pile foundation construction, casing tubes can be used to guide and protect the piles as they are driven into the ground, ensuring that the piles are correctly positioned and that the boreholes remain open.

Enabling Safe Underpinning: When underpinning an existing foundation, casing tubes can be used to temporarily support the structure while new foundation elements are constructed beneath it, ensuring the safety of the building and the workers.

Providing Long-Term Stability: In some cases, casing tubes may be left in place as a permanent part of the foundation, providing ongoing support and stability to the structure over its lifetime.

By addressing these aspects, casing tubes are a critical component in ensuring the safety and stability of foundation construction projects.

The terms "foundation construction casing tube" and "precision tube" refer to different types of tubing with distinct purposes and characteristics:

Foundation Construction Casing Tube:

Purpose: Primarily used in construction for creating temporary or permanent support structures in foundation work. It is driven into the ground to prevent soil collapse during excavation and to control water inflow.

Material: Typically made of steel, although other materials like aluminum or vinyl can be used.

Size and Tolerance: Casing tubes for foundation construction are often larger in diameter and can vary in size. The tolerances for these tubes are generally less strict compared to precision tubes since they are not required to meet the same level of dimensional accuracy.

Strength and Durability: Designed to withstand the forces of the surrounding soil and water pressure, casing tubes must be strong and durable.

Surface Finish: The surface finish of casing tubes is usually not a critical factor since they are not used for precision applications.

Applications: Used in excavations for basements, tunnels, retaining walls, and in marine construction.

Precision Tube:

Purpose: Used in applications where high precision and tight tolerances are required, such as in mechanical engineering, automotive components, medical devices, and aerospace.

Material: Often made of high-quality metals like stainless steel, aluminum, or specialized alloys.

Size and Tolerance: Precision tubes are typically smaller in diameter and have very tight dimensional tolerances. The inside and outside diameters must be accurate to meet specific engineering requirements.

Strength and Durability: While precision tubes can be strong, their primary requirement is to maintain precise dimensions and often to conduct fluids or gases without leakage.

Surface Finish: The surface finish of precision tubes is critical, as it can affect the function of the component in which they are used. They often require smooth, burr-free surfaces.

Applications: Used in industries where the exact fit and function of the tube are critical, such as in hydraulic systems, fuel lines, and in the manufacturing of precision instruments.

In summary, the main differences between foundation construction casing tubes and precision tubes lie in their intended use, material properties, dimensional accuracy, and the industries in which they are applied. Casing tubes are designed for structural support in construction, while precision tubes are used for precise and often critical applications in various industries.

1.Premium casing connection installed in German standar bolts ensure the casing easy to install and uninstall.

2. From the strict control of raw materials to multi-layer and multi-step precise welding, we comply with strict quality standards and monitoring systems in all aspects of products production to ensure 100% high standard quality to ensure products satisfy customers.

3.Professional and skillful technicial group ensure products unique and excellent.

4.The raw materials are supplied by top suppliers in China.

5.State-of-the-art forging and heat treatment casing joint.

6.Our products have been sold in over 60 countries and regions including the USA, Australia, Canada, New Zealand, Russia, Brazil, Mexico, Southeast Asia, Bangladesh, Africa, etc.



Cases

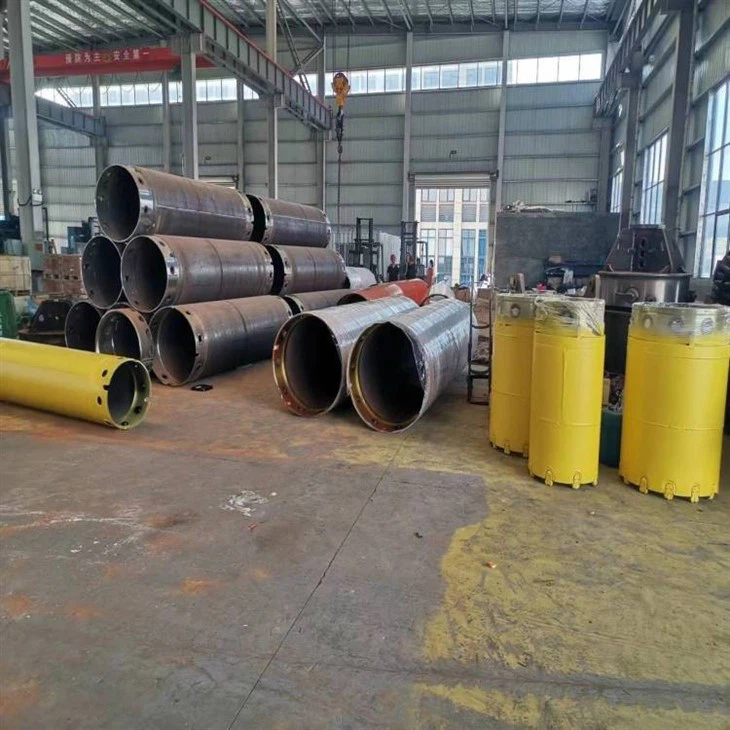

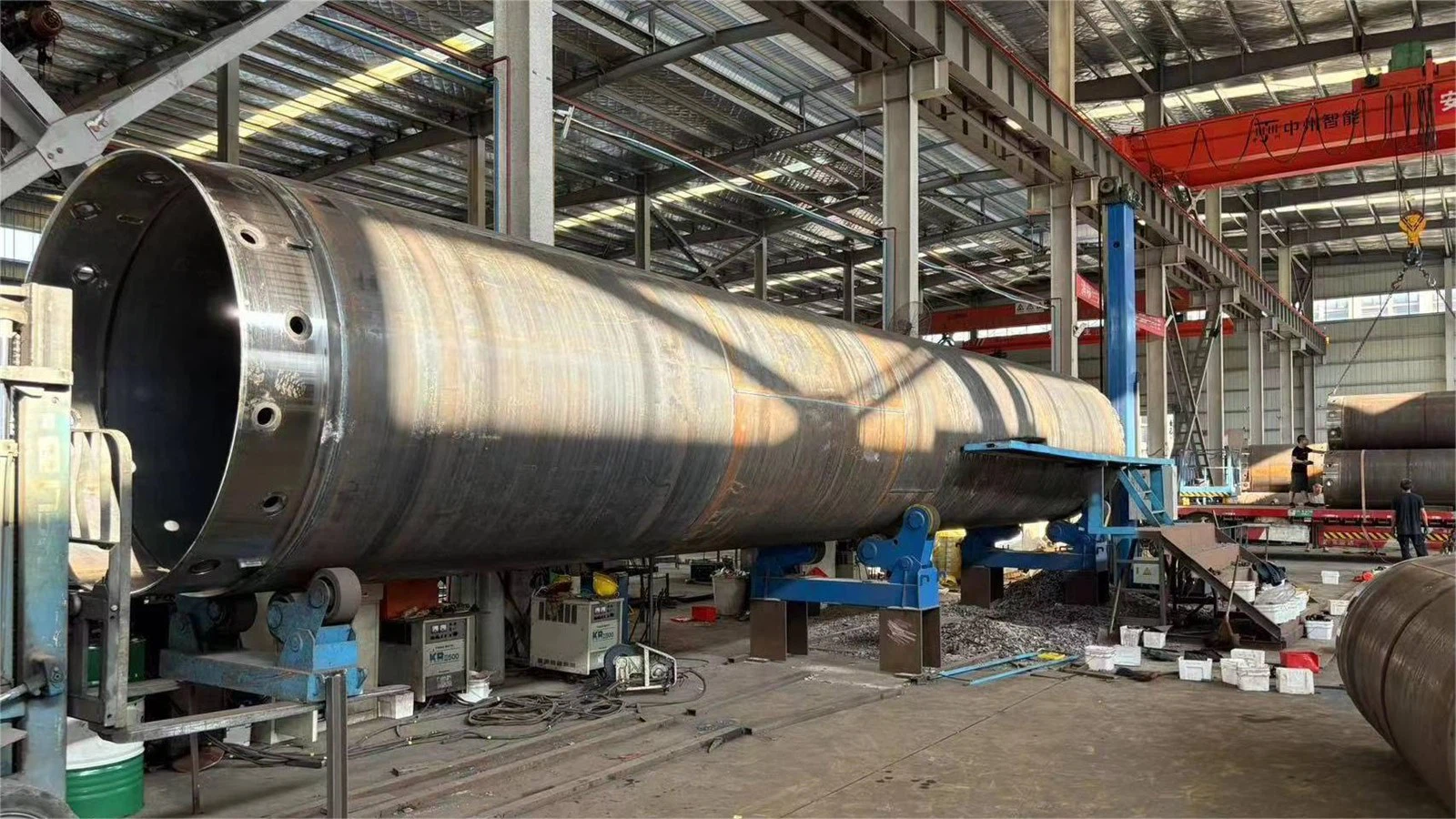

Workshop











Details





Packing and Delivery
