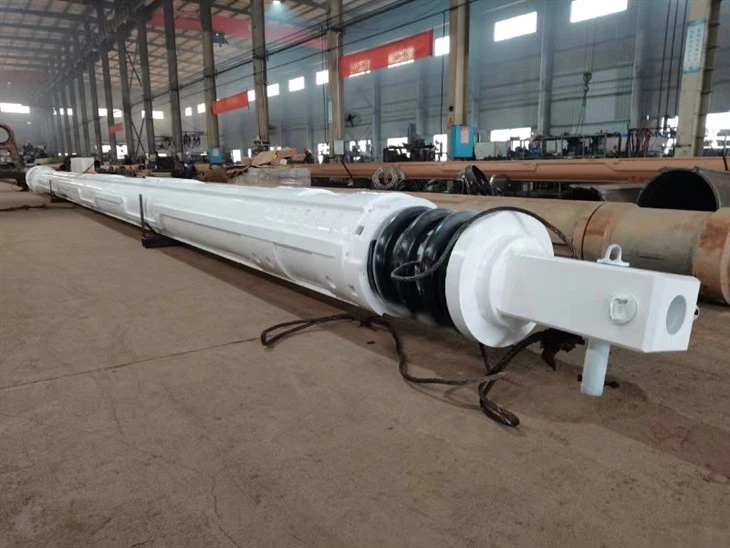

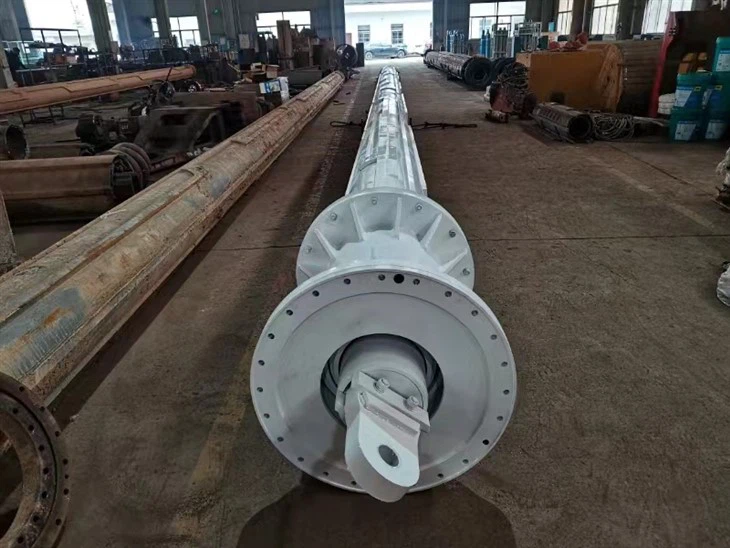

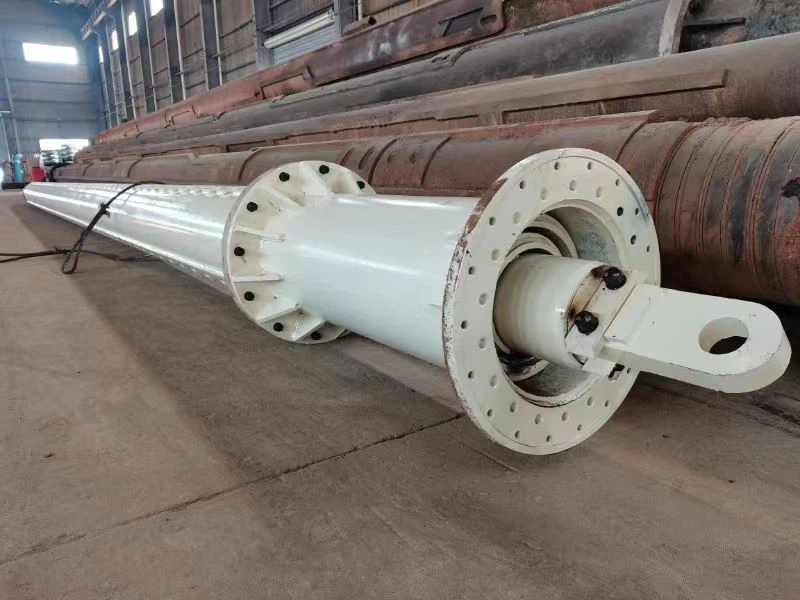

Deep Foundation Application Friction Kelly Bar

"Deep Foundation Application Friction Kelly Bar – Transforming Deep Foundation Engineering "



When it comes to deep foundation engineering, the right piling equipment makes all the difference. Our Deep Foundation Friction Kelly Bar is engineered for the toughest construction environments and the most complex geological conditions, delivering unmatched performance and reliability.







Exceptional Friction Performance: Utilizing state-of-the-art friction materials and techniques, our Kelly bar ensures optimal friction in diverse soil conditions, enhancing the load-bearing capacity of your foundation piles.



Robust Design: Constructed with high-grade steel and precision manufacturing processes, our Kelly bar maintains outstanding structural strength and durability under high torque and pressure conditions.



Modular Flexibility: The modular design allows for quick adjustments in length and diameter to meet varying project requirements, significantly boosting construction efficiency.



Easy Maintenance: Innovative connection and disassembly mechanisms simplify routine maintenance and troubleshooting, reducing downtime and maintenance costs.



Full lock Kelly bars have a solid structure with continuous outer and inner sections that are connected throughout their entire length. They provide maximum stability and are suitable for various drilling methods, including rotary drilling and continuous flight auger (CFA) drilling.





High-Rise Building Foundations: Ensures stability and safety for the foundations of tall buildings.



Bridge Pile Foundations: Ideal for various bridge foundation projects, offering long-lasting, stable support.



Port and Wharf Construction: Delivers superior piling performance even in complex underwater geological conditions.



Friction kelly bar is a tool used with an auger to drill through clay, silt, and loose sand or gravel. This tool transfers crowd force and torque from the rotary drive tool to the drilling tool or auger. In other words, a friction kelly bar provides an extension to the auger to increase the depth of a borehole







We offer more than just top-tier piling equipment. Our comprehensive technical support and after-sales services ensure you get the most out of your investment. From equipment selection and construction guidance to maintenance and repair, our expert team provides an all-in-one solution to keep your projects running smoothly.



Choose the Deep Foundation Friction Kelly Bar to enhance efficiency, safety, and cost-effectiveness in your deep foundation engineering projects. Contact us today to learn more about our products and special offers!







Deep Foundation Application Friction Kelly Bar index



Model	Drilling depth(m)	A(mm)	B(mm)	D(mm)	Total weight(T)
5 sections Friction φ377-5*10m	45	10190	46700	11400	5.08
5 sections Friction φ377-5*12m	55	12190	56700	13400	6.10
5 sections Friction φ406-5*13m	58	13075	60800	14570	8.02
5 sections Friction φ406-5*15m	68	15075	70800	16570	9.27
5 sections Friction φ445-5*13m	58	13075	60800	14570	9.79
5 sections Friction φ445-5*15m	68	15075	70800	16570	11.30
5 sections Friction φ419-5*13m	58	13075	60800	14570	8.98
5 sections Friction φ419-5*15m	68	15075	70800	16570	10.17
5 sections Friction φ470-5*13m	58	13075	60800	14570	11.05
5 sections Friction φ470-5*15m	68	15075	70800	16570	12.75
6 sections Friction φ508-6*13m	68	13075	60800	14580	12.7
6 sections Friction φ508-6*15m	81	15075	70800	16580	14.65
6 sections Friction φ580-6*18m	99	18050	98000	19750	20.54
6 sections Friction φ580-6*20m	110	20050	110000	21750	22.82
5 sections Friction φ530-5*16m	72	16050	88000	17750	15.30
5 sections Friction φ530-5*18m	82	18050	98000	19750	17.21
6 sections Friction φ630-6*20m	110	20050	113300	21700	25.89
6 sections Friction φ630-6*24m	130	24050	137300	25700	31.07
Other types can be manufactured as per customers' demand.





Common issues with friction Kelly bars and their resolutions include:



1. Excessive Wear on Friction Surfaces:
- Issue: Over time, the friction surfaces can become worn, reducing effectiveness and increasing the risk of slippage.
- Resolution: Regularly inspect and replace worn friction surfaces. Ensure proper lubrication and avoid overloading the Kelly bar to minimize wear.



2. Slippage or Reduced Torque Transmission:
- Issue: Slippage occurs when friction is insufficient, leading to a loss of torque transmission.
- Resolution: Check and adjust the friction settings as needed. Ensure that friction surfaces are clean and properly lubricated. If necessary, replace damaged or worn components.



3. Contamination:
- Issue: Debris, soil, or other contaminants can interfere with the friction surfaces and mechanical parts, leading to operational problems.
- Resolution: Clean the Kelly bar regularly to remove contaminants. Ensure that the work environment is as clean as possible to reduce the ingress of debris.



4. Corrosion:
- Issue: Exposure to moisture and chemicals can lead to corrosion, affecting the performance and longevity of the Kelly bar.
- Resolution: Store the Kelly bar in a dry, clean environment. Apply rust inhibitors or protective coatings as needed to prevent corrosion.



5. Misalignment:
- Issue: Misalignment of the Kelly bar segments can lead to uneven wear and operational issues.
- Resolution: Regularly check and adjust the alignment of the segments. Ensure that all connections are secure and properly aligned during operation.



6. Mechanical Failures:
- Issue: Mechanical parts, such as locking pins or gears, may fail due to wear or damage.
- Resolution: Conduct regular maintenance and inspection of all mechanical components. Replace any damaged or malfunctioning parts promptly.



By addressing these common issues proactively and adhering to a regular maintenance schedule, the performance and longevity of a friction Kelly bar can be significantly improved.





1Creative design:

Unique structural design enhances the torque transfer efficiency and stability of the drill pipe.
Optimised profile and internal passages to improve drilling efficiency and reduce the risk of jamming.

2. Wide applicability:
Able to adapt to various geological conditions and drilling projects, whether hard rock or soft soil.
Compatible with a variety of models of drilling equipment, providing customers with more choices.

3. High-quality after-sales service:
Provide quick response after-sales support to solve the problems encountered by customers in the process of use in a timely manner.
Provide customers with suggestions on maintenance and care of drill pipes to extend product life.



4. Construction and welding manufacturing process of Hyper drill kelly bars is by means of high quality materials and high mechanical features steel, provided with origin and quality certificates to guarantee long-life and reliability of the product after accurate engineering process.
