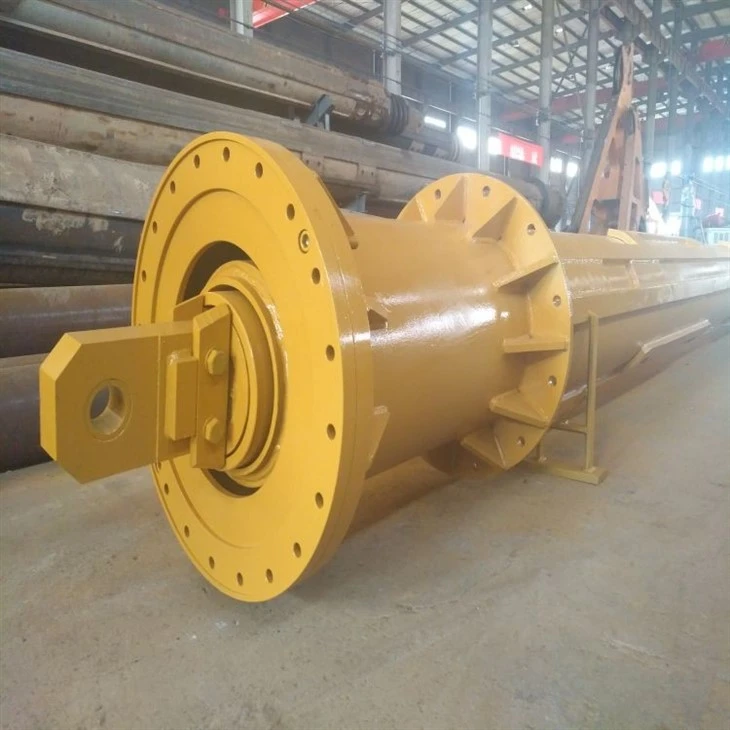

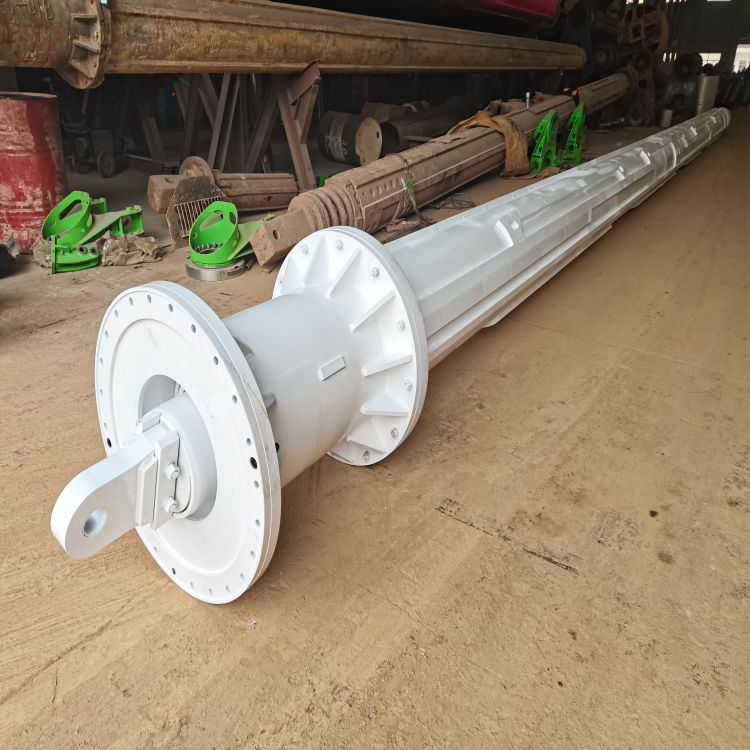

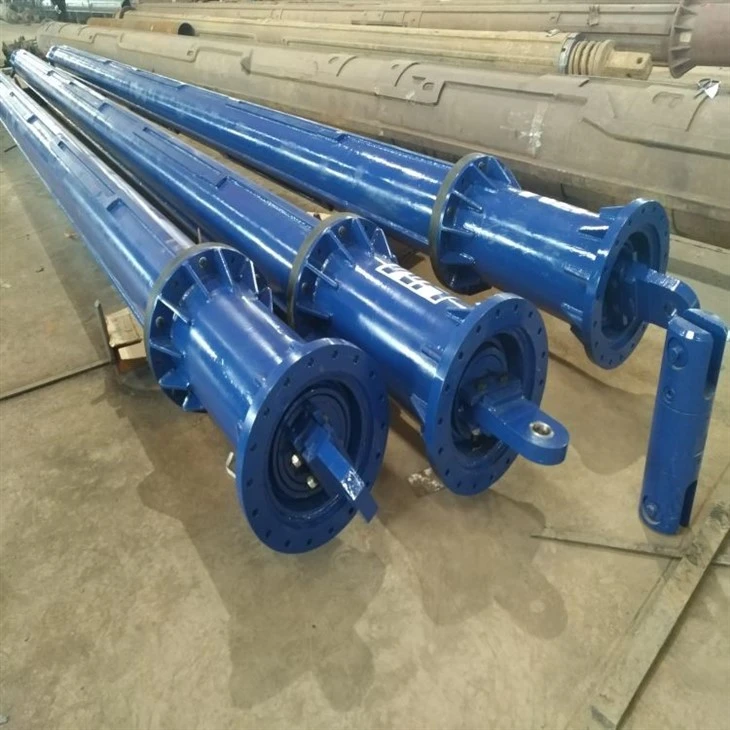

Interlocking Kelly Bar

Interlocking kelly bars are indeed privided with drive ribs which are welded with lock devices in order to transfer the maximum torque to each scope.

Hyper Drill Kelly Bar steel pipes come from the selected materials made by the first-class steel enterprises at home and abroad. The yield strength and service life are more than doubled compared with the general-purpose products.

HyperDrill Kelly Bar steel pipes used in our kelly bars come from the selected materials made by the first-class steel enterprises at home and abroad. The yield strength and service life are more than doubled compared with the general-purpose products.

The key components such as stub, key bar, pressure point are made of imported steel, which undergo special heat treatments and surface peening treatments that not only significantly improve yield strength, wear resistant, impact resistant and large strain resistant properties, but also the welding and corrosion resistant properties, which will meet the requirements for the highly reliable operating of kelly bar in large torque, large caliber, extradeep socketed pile construction.

Interlocking Kelly Bar Index

1. Complete Locking: The Full locking Kelly bar design allows the entire bar to lock fully during operation, with all segments working simultaneously rather than locking one by one.
2. Robust Structure:Each section of this Kelly bar is mechanically locked together, forming a unified structure, providing enhanced stability and torque transmission capability.
3. Torque Transmission:The fully locked structure ensures uniform torque transmission from top to bottom, reducing mechanical wear and energy loss.
4. Application Range: Particularly suited for high torque and high stability drilling operations, especially effective in hard rock and firm ground conditions.

Advantages:
- Delivers maximum torque and drilling capability.
- More robust structure, suitable for extreme working conditions.

Disadvantages:
- Relatively heavy, increasing the overall weight and energy consumption of the equipment.
- Less flexible, typically used for specific drilling depths, not as easily adjustable in length as Interlocking Kelly bars.

(3)Summary

Selection Criteria:
- Interlocking Kelly Bar: Ideal for variable geological conditions and drilling tasks requiring flexible depth adjustments, offering good adaptability.
- Full Locking Kelly Bar:Best suited for drilling operations requiring extreme stability and high torque, especially in hard rock and firm ground conditions.

When choosing a Kelly bar, consider factors such as specific project requirements, geological conditions, equipment capabilities, and construction costs to ensure the best operational efficiency and effectiveness.

Yes, there are specific safety precautions that should be followed when using an interlocking Kelly bar to ensure safe and efficient operations. Here are some key safety measures:

1. Personal Protective Equipment (PPE)
- Mandatory PPE: All personnel working near the drilling operation should wear appropriate PPE, including hard hats, safety goggles, gloves, steel-toed boots, and high-visibility vests.

2. Proper Training
- Qualified Operators: Ensure that only trained and qualified personnel operate the drilling rig and Kelly bar. Proper training should include both theoretical knowledge and practical experience.
- Safety Protocols: Operators should be familiar with all safety protocols and emergency procedures.

3. Rig Setup and Operation
- Stability: Ensure that the drilling rig is set up on stable ground and properly anchored to prevent tipping or shifting during operation.
- Secure Connections: Make sure that all connections between the Kelly bar and the drilling rig are secure and properly tightened.

4. Operating Procedures
- Slow Start: Begin operations slowly to ensure that all components are functioning correctly before ramping up to full speed.
- Monitor Load: Continuously monitor the load and torque being applied to the Kelly bar to avoid overloading and potential equipment failure.
- Avoid Overextension: Do not extend the Kelly bar beyond its designed limits, as this can cause structural failure.

5. Regular Maintenance
- Scheduled Maintenance: Perform regular maintenance according to the manufacturer's recommendations to keep the Kelly bar in optimal working condition.
- Record Keeping: Keep detailed records of inspections, maintenance, and any repairs performed.

6. Environmental Considerations
- Weather Conditions: Be mindful of weather conditions that could affect drilling operations, such as high winds, rain, or extreme temperatures.
- Spill Prevention: Take measures to prevent oil, grease, or other lubricants from contaminating the ground and surrounding environment.

7. Handling and Storage
- Proper Handling: Use appropriate lifting and handling equipment to transport and position the Kelly bar safely.
- Storage: Store the Kelly bar in a dry, secure location when not in use to prevent corrosion and physical damage.

Conclusion

Following these safety precautions can significantly reduce the risk of accidents and equipment damage when using an interlocking Kelly bar. Prioritizing safety not only protects personnel but also ensures more efficient and successful drilling operations.

1.Advanced Six-Key Layout Distribution Technology

Utilizing the advanced six-key layout distribution technology, Hyper drill kelly bars feature a standard modular design for optimal performance and compatibility.

2. High-Quality Core Components:
Our Kelly bars feature core components, such as the square head, driving keys, and locking recesses, made from imported steel and subjected to specialized heat treatment and surface strengthening processes. These parts are engineered to offer exceptional yield strength, wear and impact resistance, strain capacity, welding quality, and corrosion resistance, ensuring they meet the rigorous demands of drilling in hard rock, large-diameter, and ultra-deep piles. Our expert R&D and production team is committed to delivering superior-quality products.

3. Premium Casted Steel Pipes:
We use the casted steel pipes sourced from top-tier steel producers both domestically and internationally. Our steel pipes, compared to standard options, provide more than twice the yield strength and extended service life, fulfilling the stringent requirements for drilling through hard rock and various geological layers.

4. Experienced Expertise:
Our R&D, processing, and production team consists of industry veterans with over a decade of experience in Kelly bar design and manufacturing. We specialize in customizing Kelly bars and providing technical support for nearly all major rotary drilling rig brands, both within China and globally.



Cases





Workshop











Details







Packing and Delivery
